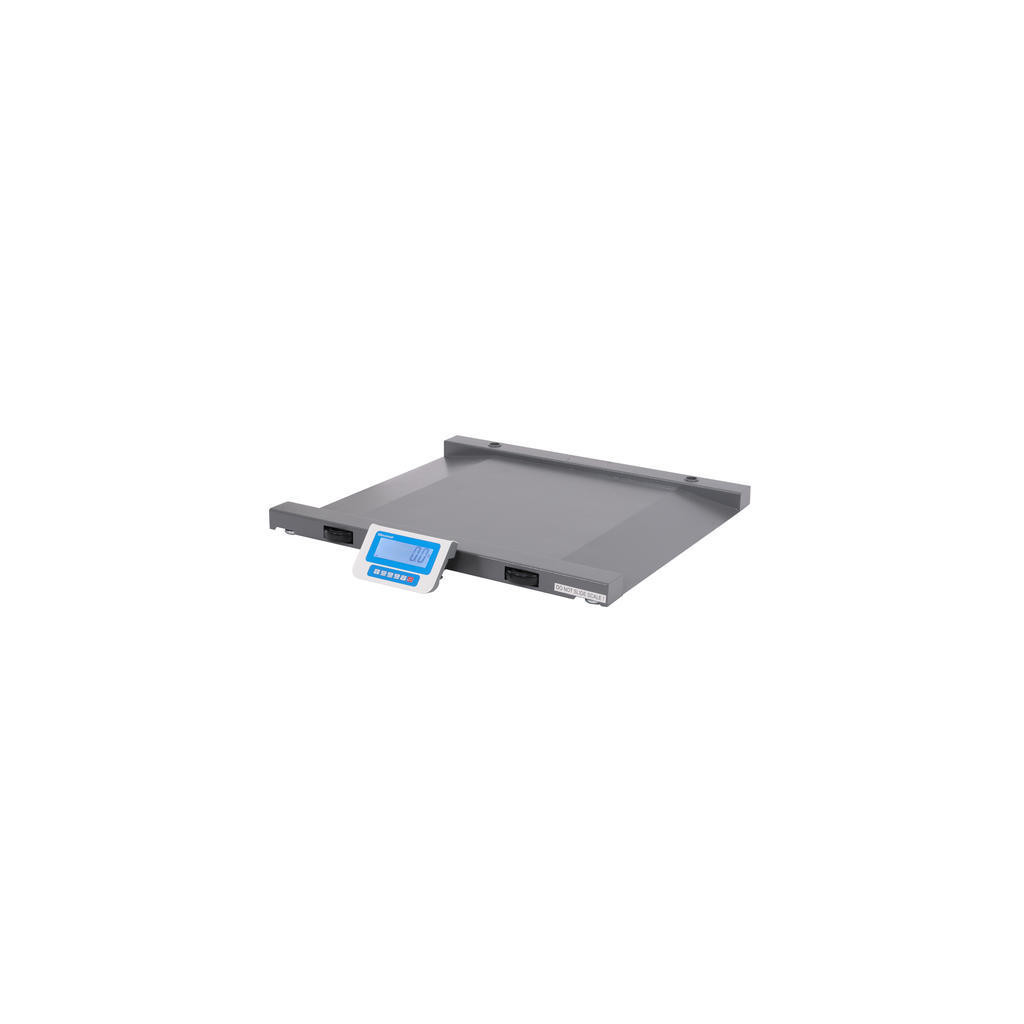

Brecknell DS1000-LCD Floor Scales 500kg x 0.2kg

£954.00
VAT included

The Brecknell DS1000-LCD Floor Scales are a heavy duty floor scale commonly used for drum weighing, with built-in ramps, carrying handles, wheels, and the latest multi-functional indicator display.

Quantity

The Brecknell DS1000-LCD Floor Scales - Capacity 500kg/ 1000lb

The Brecknell DS1000-LCD Floor Scales are the latest version of the popular DS1000 floor scales.

They are a cost effective low profile heavy duty floor scales, with a built in entry and exit gradual 9 degree ramps for the easy loading of heavy drums or containers.

The DS1000-LCD features built-in carrying handles and wheels for ease of movement, and it is powder coated for lasting corrosion protection.

The Brecknell DS1000-LCD floor scales now have the latest SBI-210 Indicator panel c/w one USB port and one RS232 bi-directional duplex port for connection to a computer or printer.

Key operation features are: On/Off/Zero, Tare, Units, Print, Hold and Accumulate/Total.

Specification:

  • Capacity: 500kg x 0.2kg / 1,000lb x 0.5lb
  • Weighing platform: 1050mm x 800mm x 46mm (LxWxH) Including 2x 205mm ramps in the length
  • Maximum Overall Dimensions including handles and wheels: 1050mm x 1060mm x 70mm
  • Unit Weight: 47 kg / 103.4 lb
  • Indicator Dimension: 241mm (W) x 125mm (L) x 64mm (H); Display: 6 digit 38mm LCD display
  • Indicator Cable: Total lead length is 4.75m, 250mm indicator display cable plus 4.5m cable to the platform
  • Annunciators: On/Off/Zero, Tare, Units, Print, Hold and Accumulate/Total
  • Port Connections: RS-232 Full Duplex, and USB ports
  • Units: lb, kg, pcs and %
  • Checkweighing: Fast visual indication as to within accepted weight window
  • Counting: Quickly work out the total quantity of an item within the box/container
  • Percentage: Allows the weighing on a percentage basis
  • Power: Mains Power Adaptor (included) or 6x AA batteries (not included)
  • Battery Life: 24 hours with backlight on, 37hours with backlight off
  • Operating Temp: -10° C to 40° C / 414° F to 104° F
  • Certification: FCC compliant, Prop 65, UL/CUL power adaptor, UKCA, CE, RoHS 3, WEEE
  • Warranty: one year

*Image shows optional indicator stand ref 816965002061.

Please also see our Floor Scales section for alternative heavy duty platform scale options, including the Adam PTM500, and Brecknell PS1000, PS2000 and DCSB.

GSSBDS1000-LCD

Data sheet

Capacity
500kg
Readability
200g
Platform Size
800mm x 1050mm
Warranty
1 Year

Specific References

EAN13
810036380270
MPN
DS1000-LCD

Download

Brecknell DS1000-LCD Information

Download (1.46MB)

Brecknell DS1000-LCD User Manual

Download (914.08KB)
