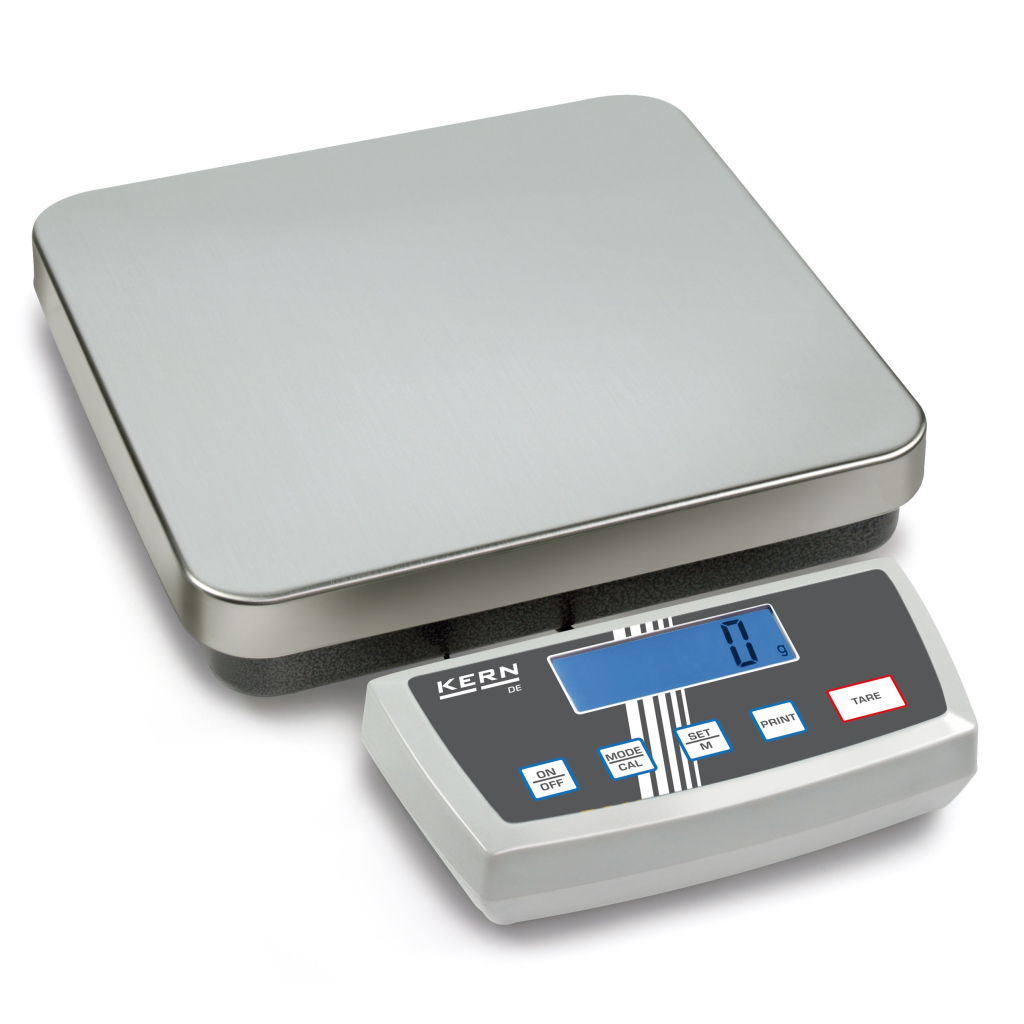

Kern DE Dual Range Platform Scales with IP65 Display

£242.00
VAT included

The Kern DE series Dual Range Platform Scale is a low profile multi functional scale with IP65 water resistant display and comes c/w an RS232 socket for computer connection and is also available with a high resolution display for even finer accuracy.

Kern
  • DE 6K1D - 3/6kg x 1/2g
  • DE 15K2D - 6/15kg x 2/5g
  • DE 35K5D - 15/35kg x 5/10g
  • DE 35K5DL - 15/35kg x 5/10g
  • DE 60K10D - 30/60kg x 10/20g
  • DE 60K10DL - 30/60kg x 10/20g
  • DE 150K20D - 60/150kg x 20/50g
  • DE 150K20DL - 60/150kg x 20/50g
  • DE 150K20DXL - 60/150kg x 20/50g
  • DE 300K50D - 150/300kg x 50/100g
  • DE 300K50DL - 150/300kg x 50/100g
  • DE 6K0.5A - 6kg x 0.5g
  • DE 12K1A - 12kg x 1g
  • DE 24K2A - 245kg x 2g
  • DE 60K5A - 60kg x 5g
  • DE 120K10A - 120kg x 10g
  • DE 15K0.2D - 6/15kg x 0.2/0.5g
  • DE 35K0.5D - 15/35kg x 0.5/1g
  • DE 60K1D - 30/60kg x 1/2g
  • DE 60K1DL - 30/60kg x 1/2g
  • DE 150K2D - 60/150kg x 2/5g
  • DE 150K2DL - 60/150kg x 2/5g
  • DE 300K5DL - 150/300kg x 5/10g
Kern DE Calibration Certificate
  • Not Required
  • Required
Quantity

Kern DE Dual Range Low Profile Stainless Steel Platform Scale with IP65 Display - Capacities 3kg to 300kg

The Kern DE series Platform Scale is a low profile multi functional scale with IP65 Water resistant display and is available in a range of capacities from 3kg to 300kg. It come c/w an RS232 socket for computer connection and is also available with a high resolution display for even finer accuracy.

Features

  • High mobility: thanks to battery operation (optional), compact, flat construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department,...)
  • Flexible positioning of display device: mounted onto the front (optional), free-standing, mounted to the wall (wall mount standard)
  • Display device: IP65. Protected against dust and water splashes (only when using battery or rechargeable battery pack both not included)
  • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
  • With the recipe function you can weigh the different ingredients of a mixture. As a check, you can also recall the total weight of all the ingredients
  • Freely programmable weighing unit (e.g. display directly in special units such as length of thread g/m, paper weight g/m2, or similar)



Technical Data

  • Large backlit LCD display, digit height 25mm
  • Dimensions of weighing plate (stainless steel):
    • A: 318x308x75mm
    • B: 318x308x85mm
    • C: 522x403x83mm
    • D: 522x406x98mm
    • E: 650x500x89mm
  • Dimensions of display device (WxDxH)225x110x45mm
  • Optional rechargeable battery operation
  • Permissible ambient temperature 5°C / 35°C



Versions

Model

Weighing Range (kg)

 Readout (g) Repeatability (b) Linearity (g) Min. Piece Weight (g) Cable (m) Net Weight (kg) Weighing Plate
Dual Range
DE 6K1D 3/6 1/2 1/2 ±2/±4 4 1.4 4 A
DE 15K2D 6/15 2/5 2/5 ±4/±10 10 1.4 4 A
DE 35K5D 15/35 5/10 5/10 ±10/±20 10 1.4 4 A
DE 35K5DL 15/35 5/10 5/10 ±10/±20 10 1.4 16 C
DE 60K10D 30/60 10/20 10/20 ±20/±40 20 1.4 4 A
DE 60K10DL 30/60 10/20 10/20 ±20/±40 20 1.4 16 C
DE 150K20D 60/150 20/50 20/50 ±40/±100 40 1.4 4 A
DE150K20DL 60/150 20/50 20/50 ±60/±150 40 1.4 16 C
DE150K20DXL 60/150 20/50 20/50 ±40/±100 40 1.4 28 E
DE 300K50D 150/300 50/100 50/100 ±100/±200 100 1.4 16 C
DE300K50DL 150/300 50/100 50/100 ±100/±200 200 1.4 28 E
High Resolution
DE 6K0.5A 6 0.5 0.5 ±1.5 1 1.4 4 A
DE 12K1A 12 1 1 ±3 2 1.4 4 A
DE 24K2A 24 2 2 ±6 4 1.4 4 A
DE 60K5A 60 5 5 ±15 10 1.4 4 A
DE 120K10A 120 10 10 ±30 20 1.4 4 A
Dual Range with High Resolution Readout
DE 15K0.2D 6/15 0.2/0.5 0.2/0.2 ±0.8/±2 0.4 1 4 B
DE 35K0.5D 15/35 0.5/1 0.5/1 ±2/±4 1 1 4 B
DE 60K1D 30/60 1/2 1/2 ±4/±8 2 1 4 B
DE 60K1DL 30/60 1/2 1/2 ±4/±8 2 1.4 16 C
DE 150K2D 60/150 2/5 2/5 ±8/±20 4 1 4 B
DE 150K2DL 60/150 2/5 2/5 ±8/±20 4 1.4 16 C
DE 300K5DL 150/300 5/10 5/10 ±20/±40 10 1.4 16 C



Note: Dual-range versions can be identified by "D" in the model code, Dual-range balances switch to the next largest weighing range automatically.

Please also see our Platform Scales section for our full range of bench and floor platform scales available.

GSKERDE6K1D

Data sheet

Capacity
300kg
Capacity
60kg
Capacity
3kg
Capacity
6kg
Capacity
15kg
Capacity
120kg
Capacity
150kg
Capacity
30kg
Capacity
12kg
Capacity
35kg
Capacity
24kg
Readability
20g
Readability
0.5g
Readability
50g
Readability
1g
Readability
10g
Readability
100g
Readability
5g
Readability
0.2g
Readability
2g
Platform Size
650mm x 500mm
Platform Size
522mm x 406mm
Platform Size
522mm x 403mm

Specific References

EAN13
4045761111356
MPN
DE6K1D

Download

Kern DE Product Information

Download (395.53KB)

Kern DE User Manual

Download (576.99KB)
