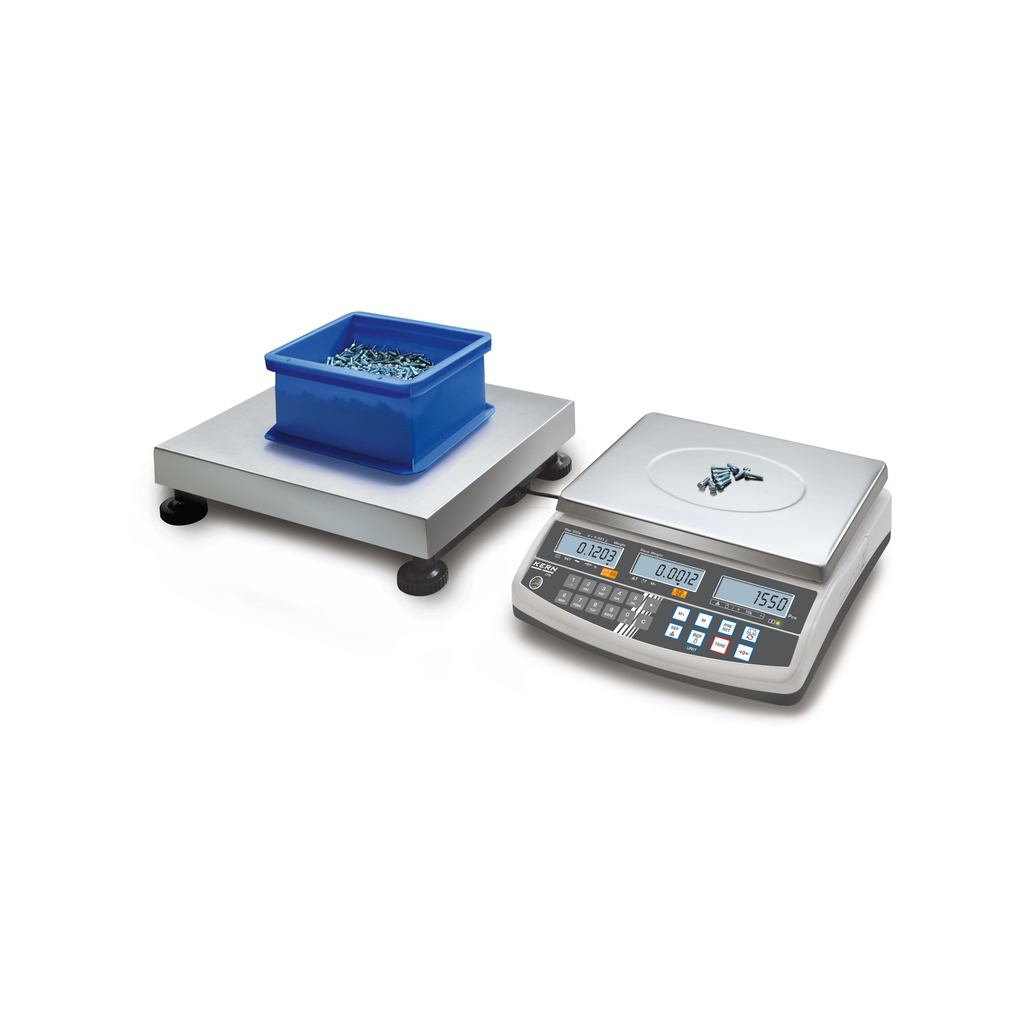

Kern CCS Precision Bench Scale and Industrial Platform Counting System Kern and Sohn - 1
zoom_in
  • Kern CCS Precision Bench Scale and Industrial Platform Counting System Kern and Sohn - 1
  • Kern CCS Precision Bench Scale and Industrial Platform Counting System Kern and Sohn - 2

Kern CCS Precision Bench Scale and Industrial Platform Counting System

£758.00
VAT included

Kern CCS Counting System combines a high readability balance with a high capacity platform, that counts the smallest parts in the largest quantities.

Kern
  • CCS 30K0.1 - 6/30kg x 0.1/1g
  • CCS 60K0.1 - 6/60kg x 0.1/2g
  • CCS 60K0.1L - 6/60kg x 0.1/2g
  • CCS 150K0.1 - 6/150kg x 0.1/5g
  • CCS 150K0.1L - 6/150kg x 0.1/5g
Quantity

Kern CCS Counting System combines CFS Balance and KFP Platform - Capacity 30kg to 300kg

The Kern CCS series scale system combines the accuracy of the CFS Counting Scale with the Industrial KFP weighing platform to enable counting the smallest parts in the largest quantities, counting resolution ≥ 300,000 points.

This highly accurate Kern CCS counting system can replace a whole range of individual counting scales and platforms.

Kern CFS Counting Balance:

This KERN CFS professional counting balance (which can be used as an individual balance can also fulfil even the highest level of requirements for accuracy, weighing range and volume of items by connecting it to a high-capacity weighing bridge

  • Large backlit LCD displays with digit height 20mm
  • Programmable using numerical keypad (e.g. required reference quantity, known reference weight)
  • Memory (PLU) for 100 items with additional text
  • Weighing with tolerance range (check-weighing)
  • Fill-to-target function: Programmable target weight. An audible and visual signal will be displayed when the target value is reached
  • Precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight



Kern KFP Industrial Platform Scale:

The high-accuracy quantity counting takes place on the weighing platform (= weighing bridge)

  • Stainless steel platform, substructure steel lacquered
  • Aluminium Single-Point load cell (1x3000 e), protected to IP65

Technical Data:

CFS:
  • Overall dimensions (WxDxH): 320x330x125 mm
  • Weighing plate (stainless steel): 320x230 mm
  • Net weight approx. 3.8kg
KFP:
  • Weighing plate (stainless steel):
    • A: 400x300x128 mm
    • B: 500x400x137 mm
    • C: 650x500x142 mm
  • Connection cable approx. 1.5 m

Versions

Counting System Platform Scale Capacity
(kg)		 Readability
(g)		 Platform Platform Size
(mm)		 Bench Scale Capacity
(kg)		 Readability
(g)
CCS 30K0.1 KFP 30V20M 30 1 A 400x300x128 CFS 6K0.1 6 0.1
CCS 60K0.1 KFP 60V20M 60 2 A 400x300x128 CFS 6K0.1 6 0.1
CCS 60K0.1L KFP 60V20LM 60 2 B 500x400x137 CFS 6K0.1 6 0.1
CCS 150K0.1 KFP 150V20LM 150 5 B 500x400x137 CFS 6K0.1 6 0.1
CCS 150K0.1L KFP 150V20LM 150 5 C 650x500x142 CFS 6K0.1 6 0.1



Please also see our Parts Counting Scales section for alternative professional parts counting scales from leading manufacturers including Adam, Brecknell, My Weigh, Kern and Ohaus.

GSKERCCS30K0.1

Data sheet

Capacity
60kg
Capacity
150kg
Capacity
30kg
Readability
1g
Readability
5g
Readability
2g
Platform Size
400mm x 300mm
Platform Size
500mm x 400mm
Platform Size
650mm x 500mm
Warranty
2 Years

Specific References

EAN13
4045761153271

Download

Kern CCS Product information

Download (395.41KB)
